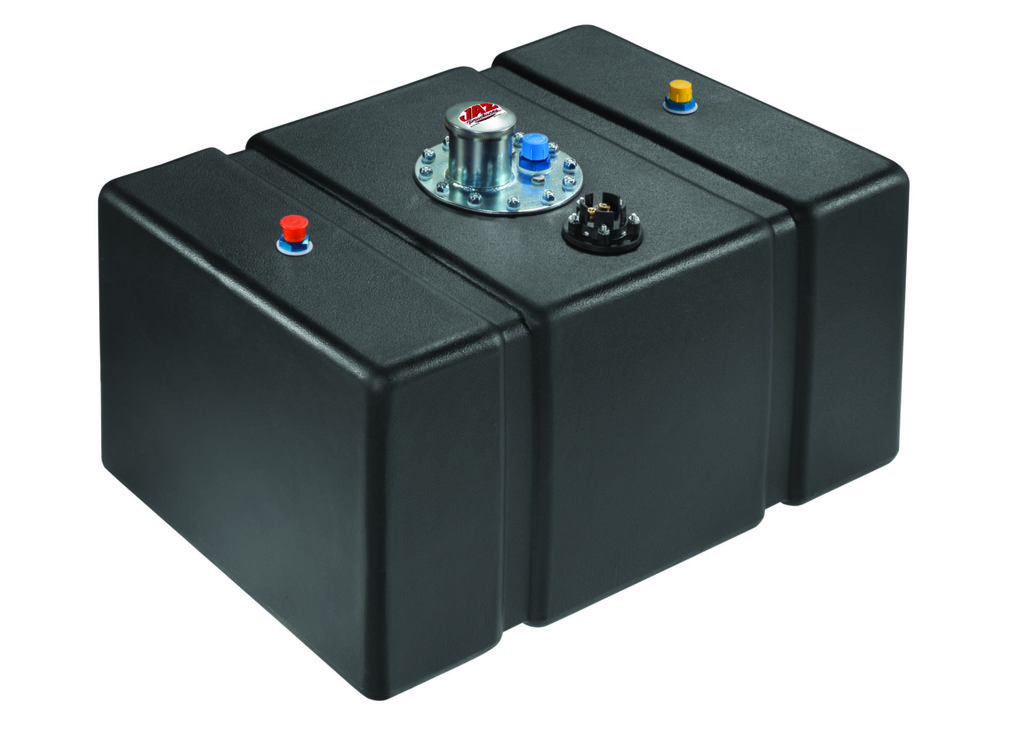

Flat Bottom Pro Street - Fill Valve
Flat Bottom Pro Street - Fill Valve

Flat Bottom Pro Street - Fill Valve

Sale Price

or Call for Catalog/Pricing
1-800-525-8133

In Stock Usually ships in 5 days to 1 week

  • Seamless rotomolded cross-linked polyethylene outer shell
  • Available with or without safety foam
  • IMCA approved fill valve with check valve flapper
  • fuel level sending unit assembly installed
  • 0-90 ohm, 70-10 ohm, or 240-33 ohm sending units available
  • Pickup hose routed to right rear corner
  • 360° mounting strap recesses
  • One AN-8 fuel pickup fitting
  • One AN-8 return fitting
  • One AN-10 tip over valve vent fitting

SizeLengthWidthDepthOhmsWith Foam Part #No Foam Part #Mount Kit
12 Gal. 17-1/2" 16" 10" 70-10 211-012-01 214-012-01 400-012-03
12 Gal. 17-1/2" 16" 10" 0-90 212-012-01 215-012-01 400-012-03
12 Gal. 17-1/2" 16" 10" 240-33 213-012-01 216-012-01 400-012-03
16 Gal. 25" 17" 10" 70-10 211-016-01   214-016-01 400-016-03
16 Gal. 25" 17" 10" 0-90 212-016-01 215-016-01 400-016-03
16 Gal. 25" 17" 10" 240-33 213-016-01 216-016-01 400-016-03
16 Gal. 18-1/2" 18-1/2" 12" 70-10 211-116-01 214-116-01 400-116-03
16 Gal. 18-1/2" 18-1/2" 12" 0-90 212-116-01 215-116-01 400-116-03
16 Gal. 18-1/2" 18-1/2" 12" 240-33 213-116-01 216-116-01 400-116-03
22 Gal. 25" 25" 9" 70-10 211-022-01 214-022-01 400-022-03
Size   Length Width Depth Ohms With Foam Part # No Foam Part # Mount Kit
22 Gal. 25" 25" 9" 0-90 212-022-01 215-022-01 400-022-03
22 Gal. 25"     25" 9"         240-33 213-022-01 216-022-01 400-022-03
22 Gal. 33" 17-3/4" 10" 70-10 211-122-01 214-122-01 400-122-03
22 Gal. 33" 17-3/4" 10" 0-90 212-122-01 215-122-01 400-122-03
22 Gal. 33" 17-3/4" 10" 240-33 213-122-01 216-122-01 400-122-03
22 Gal. 25" 17" 14" 70-10 211-222-01 214-222-01 400-222-03
22 Gal. 25" 17" 14" 0-90 212-222-01 215-222-01 400-222-03
22 Gal. 25" 17" 14" 240-33 213-222-01 216-222-01 400-222-03

What Makes Jaz Fuel Cells the Best Value?

JAZ Products maintains its own factory, equipment and molds, producing the highest quality fuel cells, rotationally molded in seamless cross-linked polyethylene. JAZ Products only uses safety foam in all their fuel cells. This foam is far superior and has a 10 times longer service life than that of other non fuel approved foams on the market. All JAZ polyethylene fuel cells exceed SFI Spec. 28.1 and are accepted by most sanctioning organizations.

Although all JAZ Products polyethylene fuel cells exceed SFI Spec. 28.1, only fuel cells labeled “THIS FUEL CELL CARRIES SFI CERTIFICATION” are actually certified. Only the fuel cells that are specifically designed for classes that require SFI certification receive a serial number and SFI label. If the fuel cell you require does not come standard with certification, JAZ Products can SFI certify any cell (with foam) in this catalog for a nominal fee of $100.00. If you have any questions regarding the SFI certification, or which fuel cell will fit your needs best, call our technical pros, and they can help you make the right decision regarding your application.
